1. Understanding the Basics of Oxy-Acetylene Torch Operation
Oxy-acetylene torches are indispensable tools for professionals working with metal, enabling cutting, welding, brazing, and heating tasks. The system operates by precisely mixing pure oxygen and acetylene gases to generate an intensely hot flame capable of melting steel. Key components work together: high-pressure oxygen and acetylene cylinders feed gas through specialized regulators that control pressure, connected to the torch via durable, color-coded hoses (typically red for acetylene, green or black for oxygen). The torch itself features interchangeable tips, each designed for specific applications like fine welding beads or heavy-duty cutting.
Mastering proper torch settings isn’t just about efficiency and quality results—it’s paramount for operator safety. Incorrect pressures or mixtures can cause irregular flames, dangerous backfires, weak welds, rough cuts, or even hazardous conditions.
2. Recommended Settings for Oxygen and Acetylene Torch
Dialing in the correct oxygen and acetylene pressures depends heavily on your specific task (welding, brazing, or cutting) and the thickness of the metal you’re working on. Consider these industry-standard pressure ranges as reliable starting points:
- Welding (small tips): Oxygen 5–10 psi / Acetylene 3–7 psi
- Brazing: Oxygen 3–5 psi / Acetylene 3–5 psi
- Cutting (small tips): Oxygen 20–40 psi / Acetylene 5–10 psi
Always prioritize safety during setup: Begin with regulator adjustment screws fully closed. Open cylinder valves slowly and deliberately. Then, carefully adjust the pressure regulators to achieve your target settings. Crucially, never exceed 15 psi on the acetylene regulator under any circumstances, as acetylene becomes unstable and potentially explosive at higher pressures.
3. Acetylene Torch Settings for Safe and Efficient Use
Setting the acetylene pressure correctly is foundational for safety and achieving a stable, controllable flame. Remember: acetylene is inherently unstable above 15 psi. All regulators, hoses, and torch tips are engineered to operate safely below this critical limit.
To establish a versatile neutral flame (the go-to for most tasks):
- Slightly open the acetylene valve on the torch handle.
- Carefully light the gas using a purpose-designed spark lighter (never matches or lighters).
- Gradually open the oxygen valve, adding oxygen until the bright inner cone becomes sharply defined against the outer flame envelope.
For thicker materials or high-heat applications like cutting, select a larger tip size which allows slightly higher gas flow while maintaining safe pressure levels (still below 15 psi for acetylene). Make small, simultaneous adjustments to both gas valves to preserve flame stability.
4. Using the Oxy Acetylene Cutting Pressure Tip Chart
Selecting the optimal tip size and corresponding gas pressures is essential for clean, efficient oxy-fuel cutting. This is where a reliable oxy acetylene cutting pressure tip chart proves invaluable. These charts correlate:
- Tip size (e.g., #0, #1, #2)
- Metal thickness
- Required oxygen pressure
- Recommended acetylene pressure
- (Often includes indicative cutting speeds)
Here’s a typical reference guide:
| Tip Size | Metal Thickness | Oxygen Pressure | Acetylene Pressure |
|---|---|---|---|
| #0 | 1/8″ (3 mm) | 20–25 psi | 5 psi |
| #1 | 1/4″ (6 mm) | 30–35 psi | 5–7 psi |
| #2 | 1/2″ (12 mm) | 40–50 psi | 6–8 psi |
Adhering to chart recommendations improves cut quality (smooth edges), minimizes slag buildup, prevents overheating/warping the metal, and optimizes gas consumption.
5. Regulator Pressure Settings for Oxy Acetylene Cutting
Setting regulator pressures for cutting requires a specific sequence to prevent dangerous pressure surges or leaks. Follow this methodical approach:
- Ensure both regulator adjustment screws are fully loosened (turned counter-clockwise).
- Stand to the side and open the oxygen cylinder valve slowly and fully.
- Slowly open the acetylene cylinder valve only ¼ to ½ turn (ensure quick access for emergency shutoff).
- Turn the oxygen regulator adjustment screw clockwise to reach your target cutting pressure (e.g., 30-35 psi for 1/4″ steel).
- Turn the acetylene regulator adjustment screw clockwise to reach the required pressure (e.g., 5-7 psi for 1/4″ steel), strictly staying below 15 psi.
- Purge air from the lines by briefly opening and closing the oxygen and acetylene valves on the torch handle separately before lighting.
Regular maintenance—keeping torch orifices clean, hoses leak-free and protected, and regulators periodically tested—ensures consistent performance and safety.
6. Pro Tips for Consistent and Safe Torch Operation

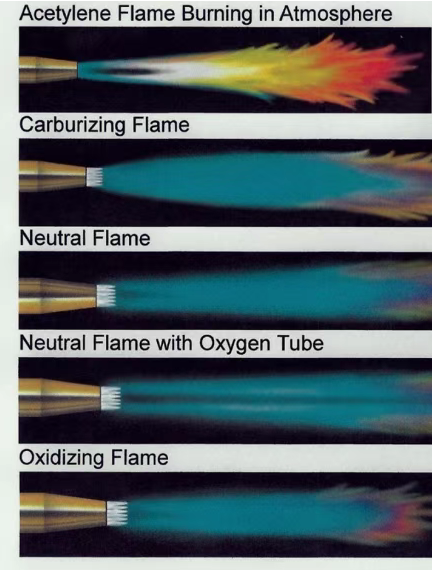

- Know Your Flame Types:
- Neutral Flame: (Equal parts O2/C2H2) Ideal for most welding and brazing. Clear, sharp inner cone with a light blue envelope.
- Carburizing Flame: (Excess Acetylene) Feathery edge around inner cone. Used for specific brazing tasks and welding high-carbon steels (softer, more controllable heat).
- Oxidizing Flame: (Excess Oxygen) Shorter, noisy inner cone with a paler envelope. Essential for cutting (provides the chemical reaction) but generally avoided for welding as it damages most metals.
- Adopt the P.A.C.E. Procedure: Make it a habit for every session.
- Purge hoses separately before lighting.
- Adjust regulators to correct pressures.
- Check all connections and hoses for leaks (soapy water solution).
- Engage the torch – light and adjust flame.
- Regular Inspection: Frequently examine hoses for cracks, burns, or bulges. Look for damaged valves, worn threads, or dirty/damaged tips. Replace defective parts immediately.
7. Conclusion: Mastering Your Torch Settings for Better Results
Precision control over your oxy-acetylene torch settings is the key to superior welding, brazing, and cutting performance. Correct pressures and flame adjustment enhance work quality, significantly reduce wasted gas, and are fundamental to a safe working environment. Investing time to understand tip charts, monitor your gauges attentively, and rigorously adhere to safe operating pressure limits will yield significant rewards. Consistent practice, combined with this knowledge, builds proficiency and confidence in handling diverse metal fabrication tasks safely and efficiently.
